FUSED SILICA & ALUMINA COMPONENTS
Industrial Ceramic Rollers
Fused silica ceramic rollers for horizontal glass tempering, annealing, continuous steel heat treatment and related high-temperature conveying. Replacement rollers are reviewed from the equipment drawing, end interface, surface condition, straightness or runout and operating cycle.
Request a Quote
View Technical Options ↓
01
Primary Process
Horizontal glass tempering and annealing lines.
02
Material Logic
Low expansion and resistance to rapid temperature change.
03
Critical Geometry
Diameter, length, end details, straightness or runout.
04
Surface & Interface
Surface condition and metal end connection must match the equipment.
PRODUCT OVERVIEW
Fused Silica Rollers for Glass Heat Treatment
Fused silica hollow rollers can be produced by near-net shaping, high-temperature sintering and precision cold machining. Typical applications include horizontal glass tempering, float-glass transfer and annealing, steel-strip continuous annealing and large-format tile production. Final suitability depends on the selected grade, line geometry, atmosphere, load, duty cycle and inspection method.
- Roller body and end geometry reviewed from drawings
- Material recommendation based on service conditions
- Prototype and repeat-production requirements considered separately
- Inspection points agreed before manufacturing
Discuss Your Application
MATERIAL OPTIONS
Ceramic Materials for Roller Applications
Final material selection depends on temperature, load, atmosphere, thermal shock and contact conditions. The options below support initial engineering review.
Fused Silica
Primary option for low-expansion thermal-process components.
Alumina
Reviewed for wear, insulation and general industrial components.
Material Review
Final selection depends on grade, geometry and service conditions.
Explore details → CONFIGURATION
Types, Sizes and Custom Options
Available configurations include solid or hollow bodies, custom end geometry, machined features and application-specific surface requirements. Final dimensions and tolerances follow the approved drawing.
A
Material / Grade
Specify fused silica or alumina, or share the required properties for material review. View material data →
B
Geometry
Provide dimensions, interfaces, holes, ends and critical features. View details →
C
Operating Conditions
Define temperature, load, atmosphere, motion and contact. View details →
D
Inspection & Records
State critical dimensions, methods and required documents. View details →
TECHNICAL REVIEW
Specification Framework
For quotation, provide the latest drawing, service conditions, order quantity, critical characteristics and required inspection documents.
| Technical Item | Reference Capability | Engineering Notes |
|---|---|---|
| Product form | Fused-silica hollow roller | Final grade, dimensions and end interfaces are confirmed during drawing review. |
| Manufacturing route | Near-net shaping, high-temperature sintering and precision cold machining | The process route is selected according to geometry, tolerances and order quantity. |
| Maximum service temperature | Up to 1,200 °C for the referenced hollow-roller grade | Allowable temperature is verified against grade, load, atmosphere and continuous or peak duty cycle. |
| Surface finish | Ra 0.6–1.0 µm (reference range) | The required contact surface and measurement method must be stated on the drawing. |
| Radial runout | <0.10 mm (reference value) | Acceptance is defined against an agreed datum, diameter and working length. |
| Typical applications | Glass tempering and annealing, steel-strip annealing, float-glass transfer and large-format tile lines | Final suitability depends on equipment design and operating conditions. |
APPLICATIONS
Where Ceramic Rollers Are Used
Ceramic rollers are configured for glass processing, industrial furnaces, heat treatment and steel production according to the equipment and operating conditions.
01
Glass Processing
Rollers and furnace components for tempering, annealing and conveying.
Industrial Furnaces
Components for supporting, conveying and protecting loads at high temperature.
Heat Treatment
Hollow rollers and fixtures for repeated thermal cycles and controlled atmospheres.
Steel Processing
Ceramic rollers and components for strip heat-treatment equipment.
Explore application → MANUFACTURING & QUALITY
From Requirement Review to Production
The production route is defined after reviewing the material, geometry, quantity, critical characteristics and inspection requirements.
View Manufacturing Capabilities
- 01Application & Drawing Review
Confirm operating conditions, interfaces and critical features.
- 02Material & Process Planning
Select the ceramic grade and practical manufacturing route.
- 03Forming, Firing & Machining
Control the geometry through the agreed production sequence.
- 04Inspection & Documentation
Verify critical characteristics before shipment.
FACTORY EVIDENCE
Products, Equipment & Inspection
Review actual components, production equipment and inspection resources from the manufacturing facility.

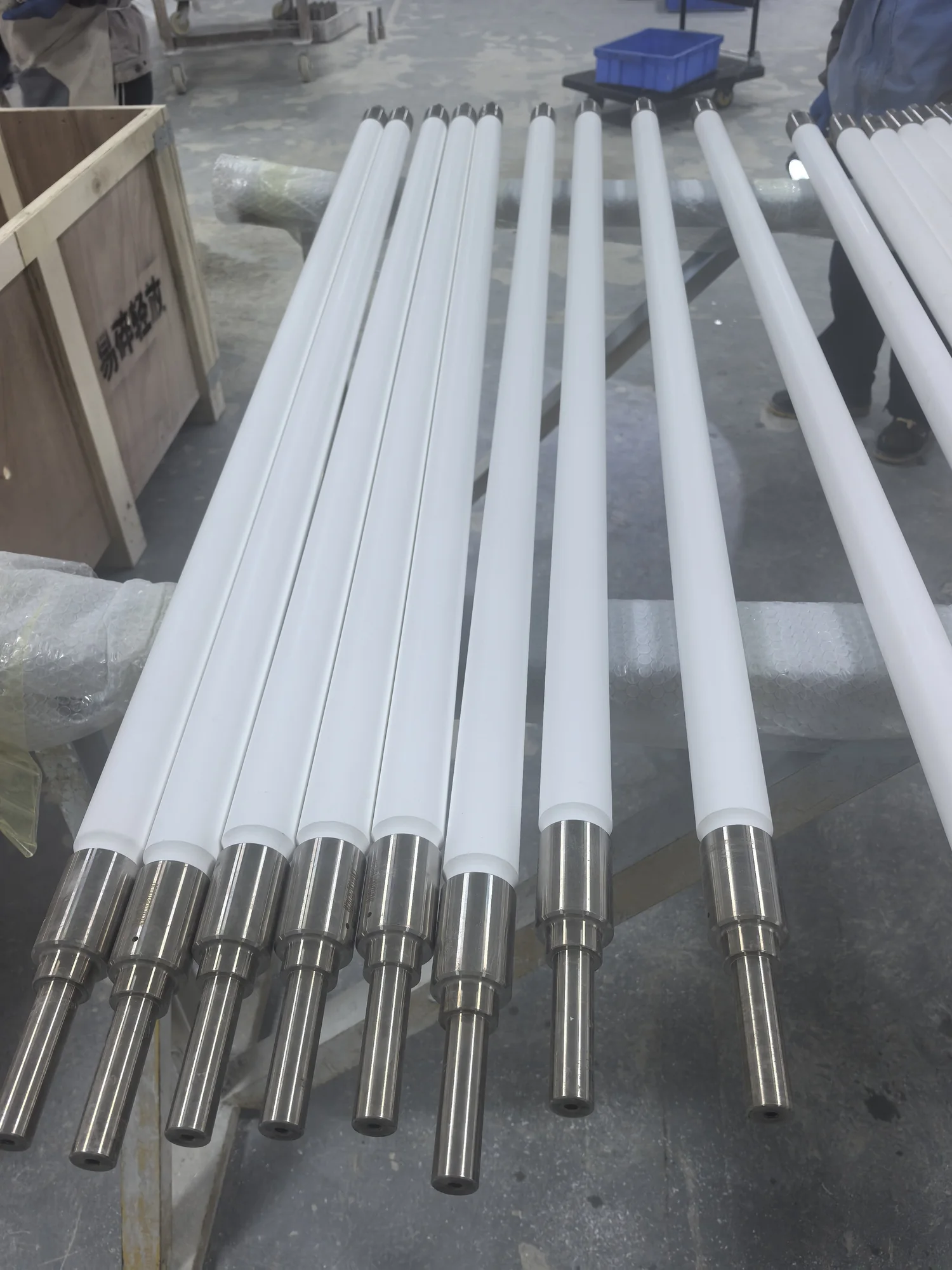

Finished Roller Batch
Finished fused silica rollers prepared for inspection.

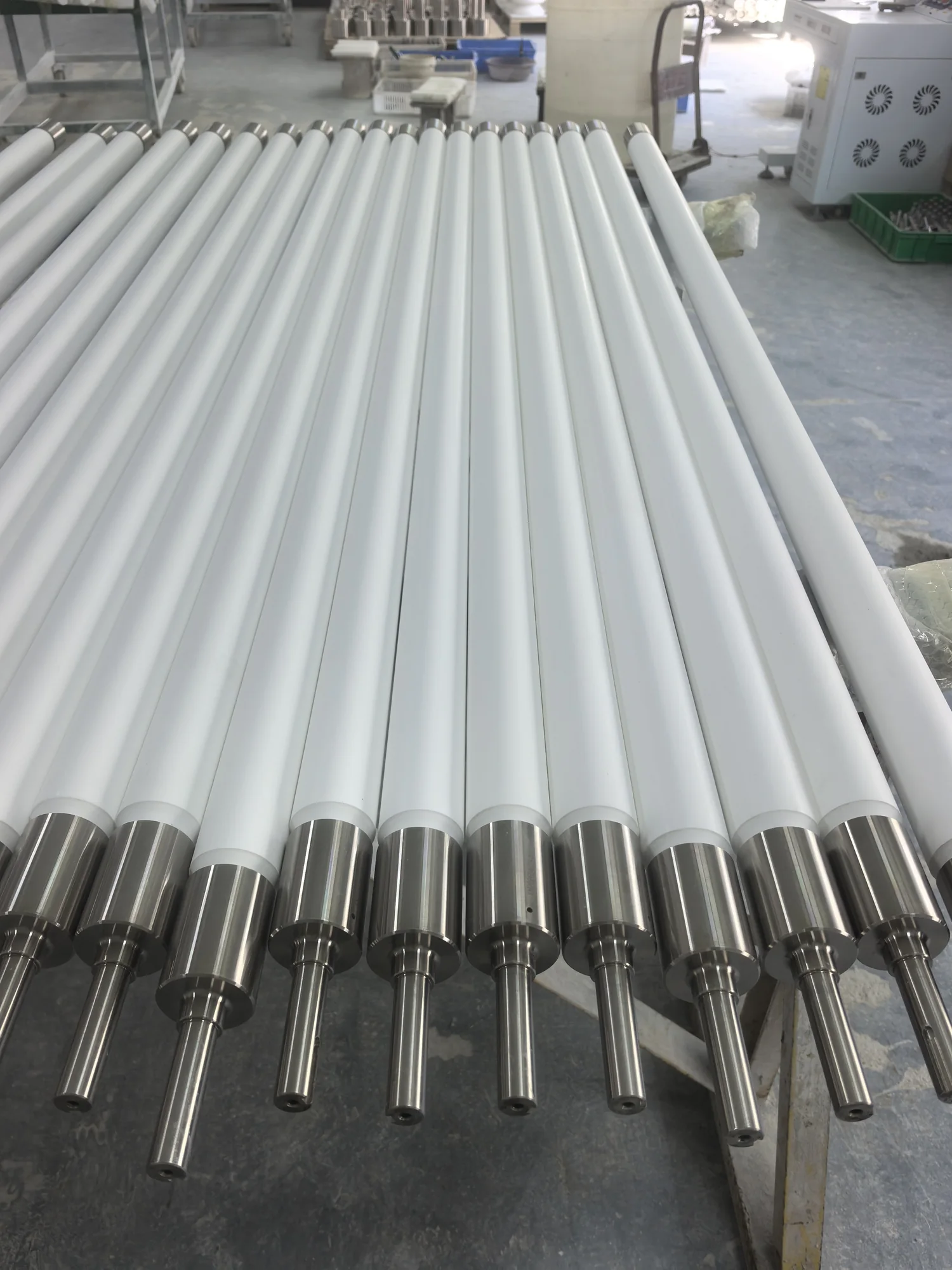

Rollers with Metal End Fittings
Long fused silica rollers with assembled metal end fittings.
Machined End Interfaces
Close-up of machined metal end interfaces on fused silica rollers.
Rollers Ready for Inspection
Finished roller components staged for dimensional and visual inspection.
FREQUENTLY ASKED QUESTIONS
Industrial Ceramic Rollers: Buyer Questions
Answers to common questions from engineering and purchasing teams.
Which material is typically used for industrial ceramic rollers?
Fused silica is the primary option for low-expansion rollers used in glass and thermal-processing lines. Alumina can be reviewed for wear, insulation or other mechanical duties when the drawing and operating conditions support it.
Can you manufacture replacement rollers from an existing drawing or sample?
Yes. A current equipment drawing is preferred because it defines the roller body, end interfaces, datums and critical dimensions. A physical sample can support reverse-engineering review when dimensions and acceptance criteria are available.
Which roller dimensions and tolerances must be specified?
Provide body diameter, working length, overall length, wall section or bore, end geometry, straightness or runout requirement, surface finish and the relevant inspection datum.
What operating data is required for material and design review?
State the continuous and peak temperature, atmosphere, supported load, line speed, contact material, heating and cooling cycle, and any contamination or surface-marking limits.
Can metal shafts or end fittings be supplied with the roller?
Metal end interfaces and assembled fittings can be reviewed from the equipment drawing. Material, fit, attachment method and runout requirements must be agreed before quotation.
What inspection records can be supplied for ceramic rollers?
Available records may include agreed dimensional, runout, surface, visual, material and batch documents. List the required reports and acceptance criteria in the RFQ.
START WITH YOUR DRAWING
Discuss Your Industrial Ceramic Rollers Requirement
Send the latest drawing, operating conditions, preferred material or required properties, quantity, critical features and required inspection documents.
