Ceramic Rings & Wear Components
Alumina wear rings and fused silica thermal rings are manufactured from drawings. Inside and outside diameter, thickness, face geometry, grooves, mating parts, surface finish, load and inspection method are reviewed for each project.
Available Materials
Fused silica and alumina.
Supply Basis
Drawing or physical sample review.
Customization
Geometry, ends, holes and machining by project.
Quality
Critical dimensions and documentation agreed before production.
Custom Ceramic Rings Built Around the Drawing
Alumina wear rings and fused silica thermal rings are manufactured from drawings. Inside and outside diameter, thickness, face geometry, grooves, mating parts, surface finish, load and inspection method are reviewed for each project.
- Seal and wear conditions reviewed with the mating material
- Face, groove, step and edge geometry checked from the drawing
- Lapping, polishing and surface requirements confirmed before production
- Inspection points and protective packaging agreed for finished faces
Material Options for Ceramic Rings
Material selection depends on temperature, atmosphere, wear, mating material, load, electrical requirements and ring geometry. The final grade is confirmed during drawing and application review.
Ring & Wear-Component Configurations
Common configurations are shown below. Final dimensions, tolerances and features are manufactured to the approved drawing.
Specify fused silica or alumina, or share the required properties for material review. View material data →
Ceramic Ring RFQ & Specification Checklist
For quotation, provide the latest drawing, service conditions, order quantity, critical characteristics and required inspection documents.
Related Applications for Ceramic Rings
These related application pages explain the operating conditions that influence component design. Final selection is reviewed against the material grade, drawing and actual process.
Ring components for thermal-equipment interfaces and handling assemblies.
Thermal and insulating rings for furnace fixtures and process equipment.
Rings reviewed for thermal cycling, mating surfaces and wear conditions.
Wear and insulating ring components for heat-treatment equipment.
From Requirement Review to Production
The production route is defined after reviewing the material, geometry, quantity, critical characteristics and inspection requirements.
- 01Application and Drawing Review
Confirm the service conditions, interfaces and critical features for the Ceramic Rings.
- 02Material and Process Planning
Select the candidate ceramic grade and practical manufacturing route.
- 03Forming, Firing and Machining
Define the production sequence only after grade, geometry and quantity are known.
- 04Inspection and Documentation
Verify the agreed characteristics and prepare the purchase-order records.
Products, Equipment & Inspection
Review actual components, production equipment and inspection resources from the manufacturing facility.

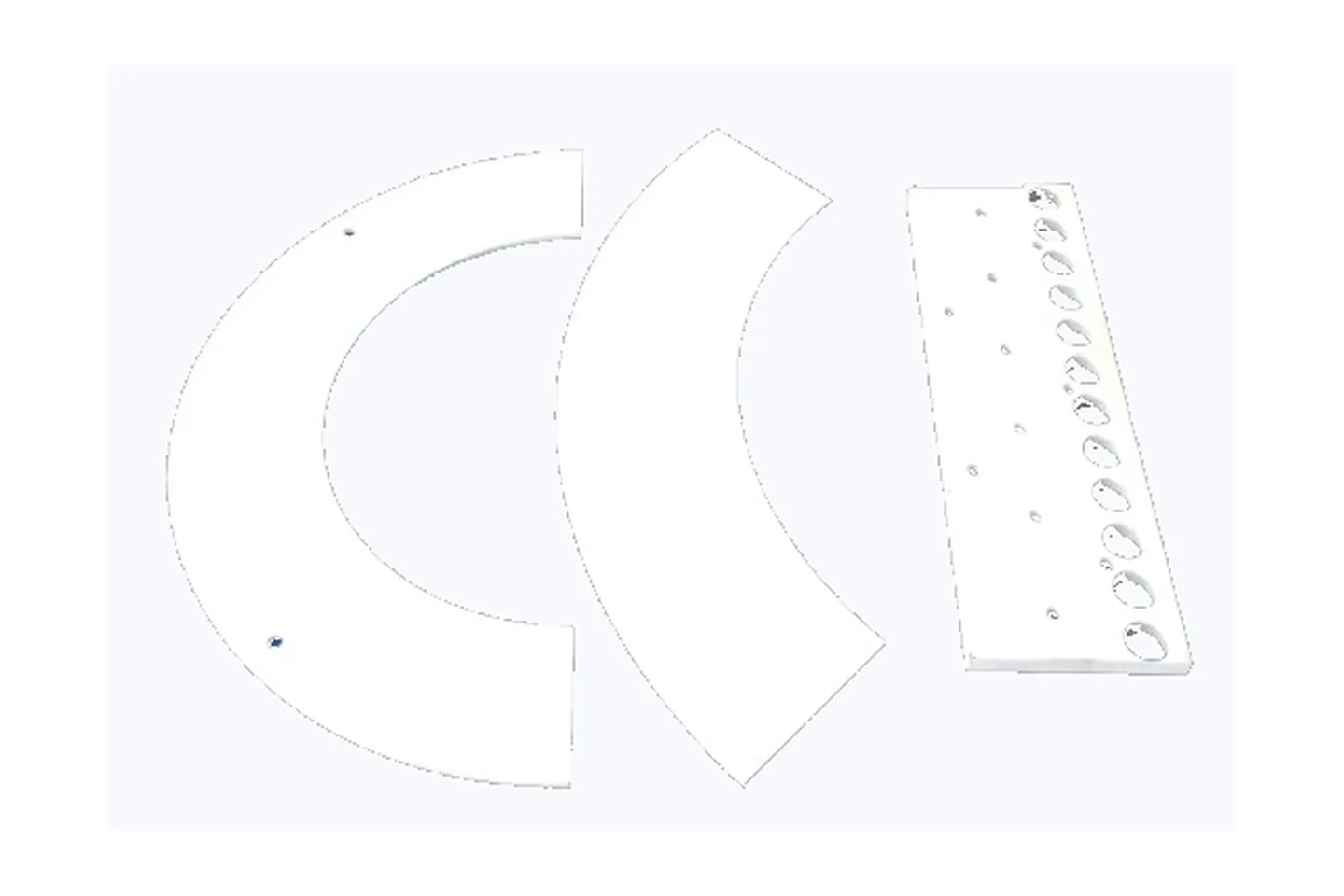

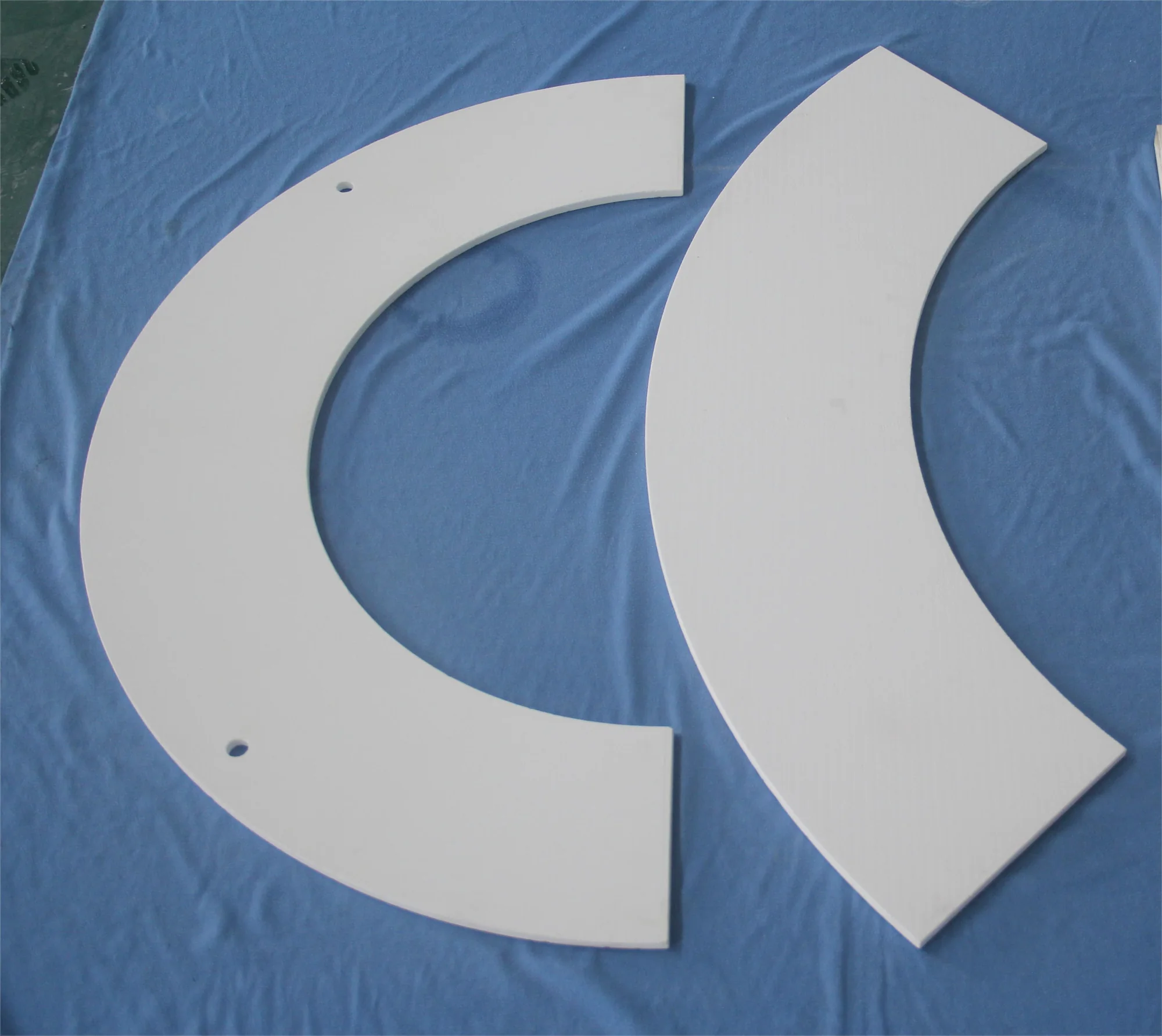

Custom Rings & Shaped Components
Custom fused silica plates, rings and shaped furnace components.

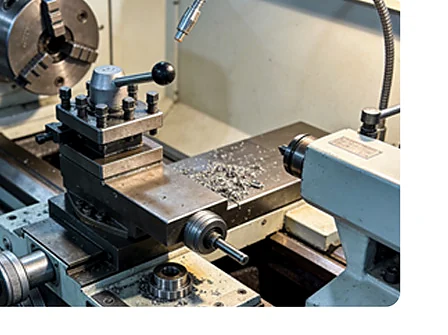

Precision Lathe Machining
Lathe machining at the technical ceramics production facility.
Inspection Laboratory
Laboratory equipment used for ceramic material and quality checks.
Finished Component Inventory
Finished technical ceramic components in the production workshop.
Ceramic Rings & Wear Components: Buyer Questions
Answers to common questions from engineering and purchasing teams.
Which materials are available for ceramic rings and wear components?
Alumina is commonly reviewed for wear, insulation and mechanical service. Fused silica is considered for thermal rings where low expansion is important. Final selection depends on the drawing and operating conditions.
Can ring faces be lapped or polished?
Face-finishing requirements can be reviewed when the target roughness, flatness, parallelism, mating function and inspection method are defined on the drawing.
Which ring dimensions and tolerances must be specified?
Provide outside and inside diameter, thickness or overall length, face geometry, grooves, steps, edge details, datums, tolerances and the required inspection method.
Why are the mating material and operating medium important?
Wear, friction, leakage, thermal expansion and chemical compatibility depend on the mating surface, medium, temperature, load and motion. Include these conditions in the RFQ.
Can ceramic rings be manufactured from a sample?
A physical sample can support review, but a dimensioned drawing with acceptance criteria is preferred. Reverse-engineering scope and any destructive measurement must be agreed first.
What inspection records can be supplied?
Available records may include agreed dimensional, face, surface, visual, material and batch documents. State the required reports and acceptance criteria before quotation.
Discuss Your Ceramic Rings & Wear Components Requirement
Send the latest drawing, operating conditions, preferred material or required properties, quantity, critical features and required inspection documents.
