Ceramic Tubes & Hollow Rollers
Available Materials
Fused silica and alumina.
Supply Basis
Drawing or physical sample review.
Customization
Geometry, ends, holes and machining by project.
Quality
Critical dimensions and documentation agreed before production.
Ceramic Tubes and Hollow Rollers by Drawing
- Tube material and grade reviewed from service conditions
- Bore, wall thickness, length and end geometry checked from the drawing
- Closed ends, holes, slots and machined interfaces reviewed for feasibility
- Critical dimensions and inspection records agreed before production
Material Options for Ceramic Tubes & Hollow Rollers
Material selection depends on temperature, atmosphere, load, contact conditions and tube geometry. The final grade is confirmed during drawing and application review.
Tube & Hollow-Roller Configurations
Common configurations are shown below. Final dimensions, tolerances and features are manufactured to the approved drawing.
Specify fused silica or alumina, or share the required properties for material review. View material data →
Ceramic Tube RFQ & Specification Checklist
For quotation, provide the latest drawing, service conditions, order quantity, critical characteristics and required inspection documents.
| Technical Item | Reference Capability | Engineering Notes |
|---|---|---|
| Product form | Fused-silica hollow roller | Final grade, dimensions and end interfaces are confirmed during drawing review. |
| Manufacturing route | Near-net shaping, high-temperature sintering and precision cold machining | The process route is selected according to geometry, tolerances and order quantity. |
| Maximum service temperature | Up to 1,200 °C for the referenced hollow-roller grade | Allowable temperature is verified against grade, load, atmosphere and continuous or peak duty cycle. |
| Surface finish | Ra 0.6–1.0 µm (reference range) | The required contact surface and measurement method must be stated on the drawing. |
| Radial runout | <0.10 mm (reference value) | Acceptance is defined against an agreed datum, diameter and working length. |
| Typical applications | Glass tempering and annealing, steel-strip annealing, float-glass transfer and large-format tile lines | Final suitability depends on equipment design and operating conditions. |
Related Applications for Ceramic Tubes
These related application pages explain the operating conditions that influence component design. Final selection is reviewed against the material grade, drawing and actual process.
Hollow rollers and tubes for glass tempering, annealing and transfer equipment.
Tubes and cylindrical components for high-temperature supports and process interfaces.
Hollow components reviewed for thermal cycling and controlled atmospheres.
Ceramic tubes and rollers for steel-strip heat-treatment equipment.
From Requirement Review to Production
The production route is defined after reviewing the material, geometry, quantity, critical characteristics and inspection requirements.
- 01Application and Drawing Review
Confirm the service conditions, interfaces and critical features for the Ceramic Tubes.
- 02Material and Process Planning
Select the candidate ceramic grade and practical manufacturing route.
- 03Forming, Firing and Machining
Define the production sequence only after grade, geometry and quantity are known.
- 04Inspection and Documentation
Verify the agreed characteristics and prepare the purchase-order records.
Products, Equipment & Inspection
Review actual components, production equipment and inspection resources from the manufacturing facility.

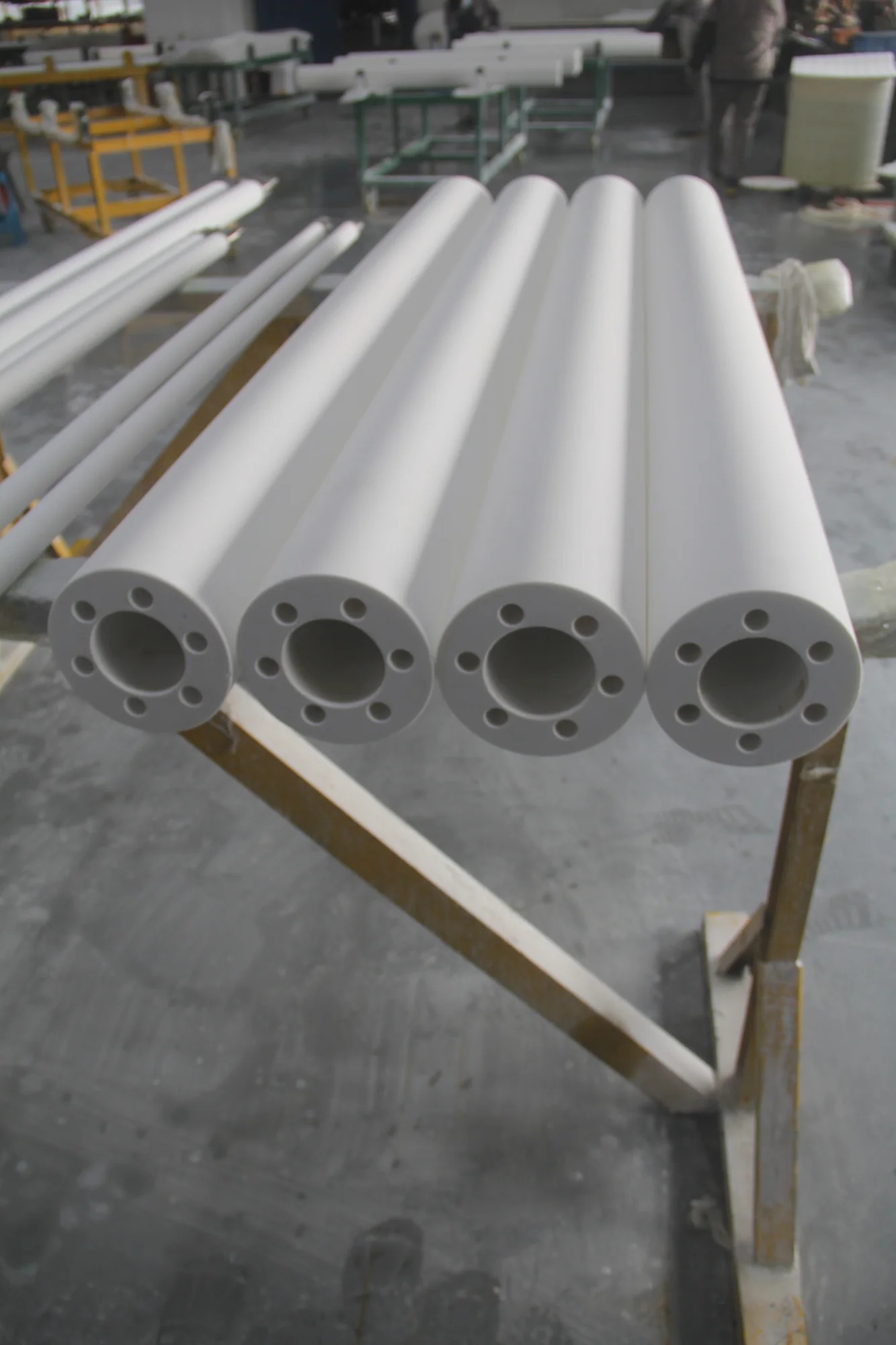

Multi-Bore Hollow Rollers
Fused silica hollow ceramic rollers with multi-hole end geometry.

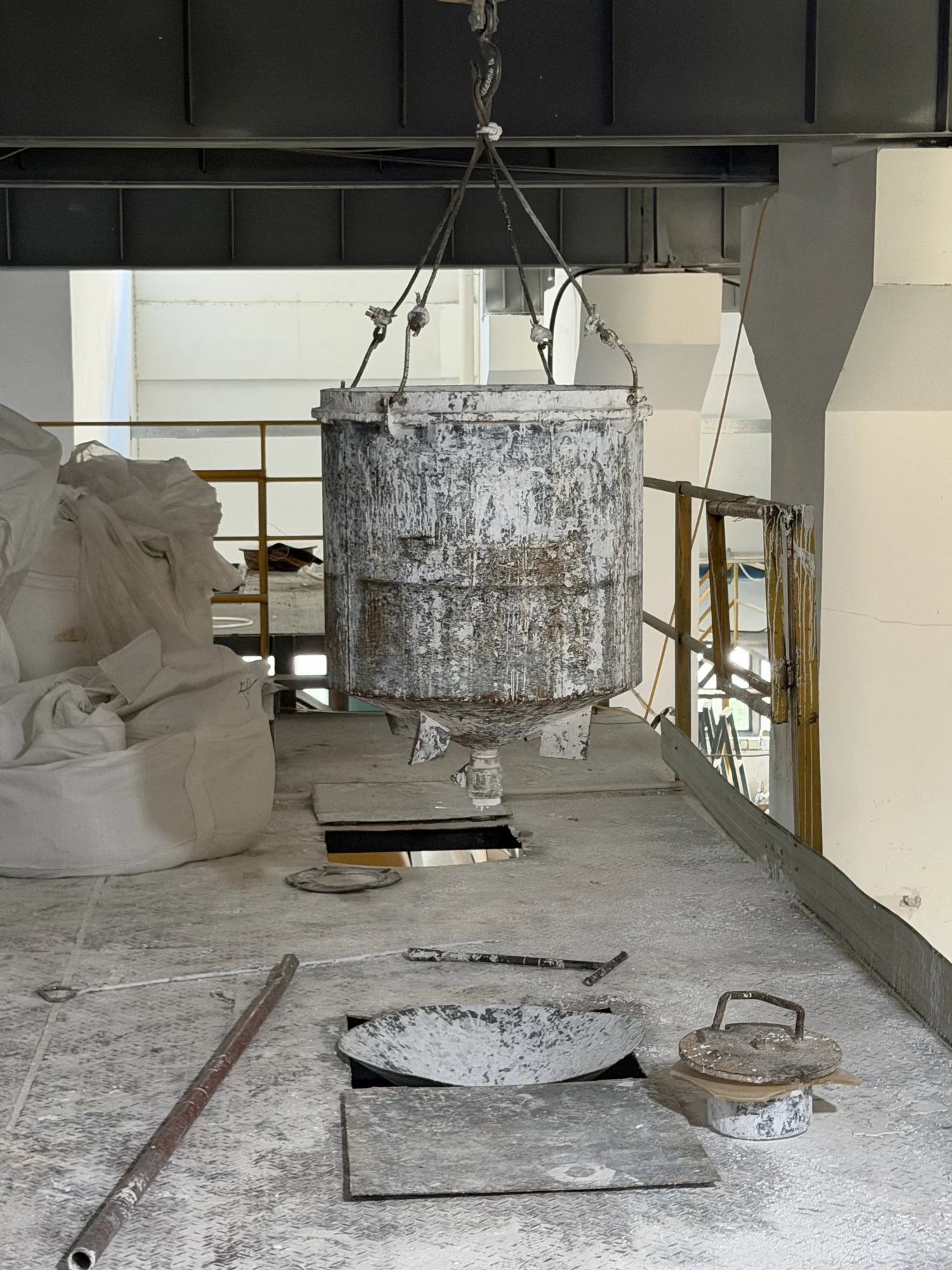

Factory Production Equipment
Factory equipment supporting ceramic forming and thermal processing.
Precision Lathe Machining
Lathe machining at the technical ceramics production facility.

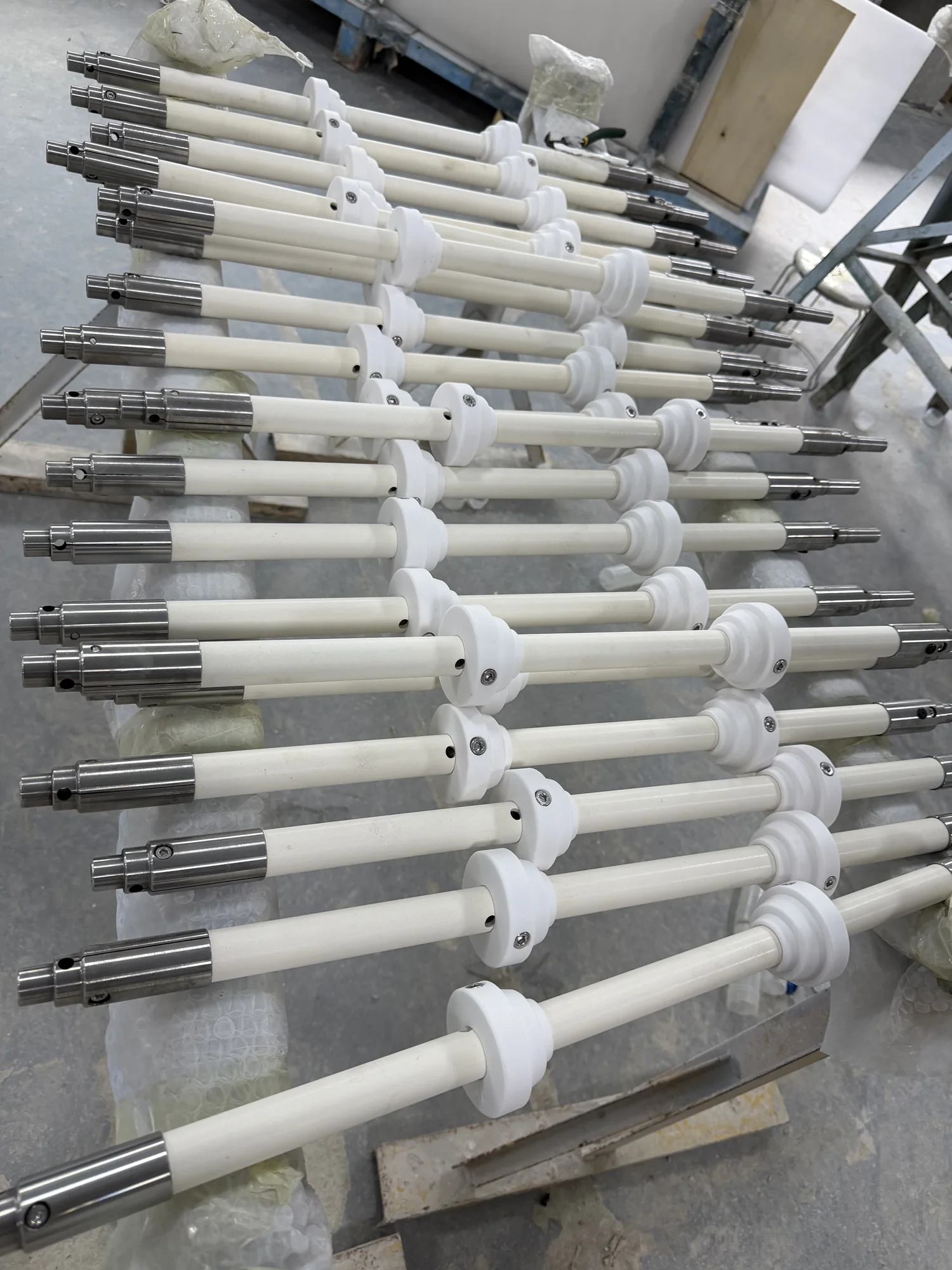

Finished Hollow-Roller Batch
Industrial ceramic roller batch in the workshop.
Ceramic Tubes & Hollow Rollers: Buyer Questions
Answers to common questions from engineering and purchasing teams.
Which materials are available for ceramic tubes and hollow rollers?
RYANCERA currently supplies fused silica and alumina components. Fused silica is commonly reviewed for low thermal expansion, while alumina is considered for wear, insulation and mechanical service.
Can you manufacture central bores and multiple auxiliary bores?
Yes, multi-bore and custom end geometries can be reviewed from a complete drawing. Bore diameter, position, wall section, end details and inspection method must be defined.
How should wall thickness, bore pattern and straightness be specified?
Use a dimensioned drawing with datums, tolerances and critical characteristics. State whether straightness or runout applies and define the working length and measurement method.
What temperature can a ceramic tube or hollow roller withstand?
Temperature capability depends on the exact material grade, load, atmosphere, support arrangement and duty cycle. Any published reference value must be verified for the actual application before quotation.
Can prototypes and repeat-production batches be supplied?
Prototype and repeat-production requirements are reviewed separately because tooling, process control, order quantity and inspection planning may differ.
What inspection records can be supplied?
Available records may include agreed dimensional, straightness, runout, visual, material and batch documents. State the required reports and acceptance criteria in the RFQ.
Discuss Your Ceramic Tubes & Hollow Rollers Requirement
Send the latest drawing, operating conditions, preferred material or required properties, quantity, critical features and required inspection documents.
